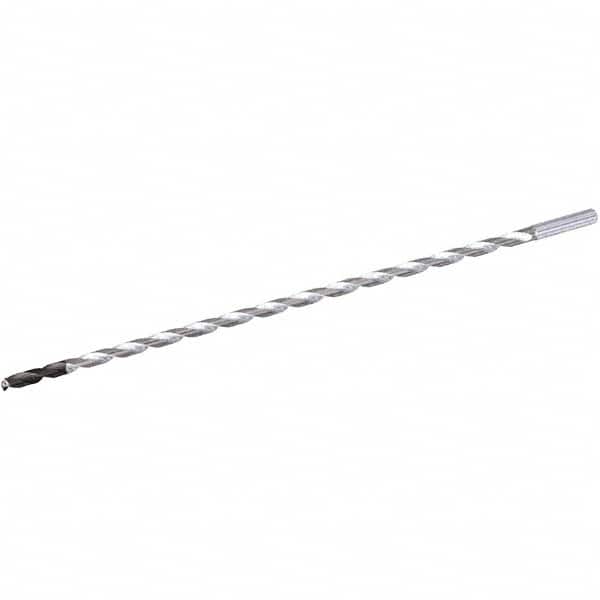

Extra Length Drill Bit: 0.3438″ Dia, 135 °, Solid Carbide AlCrN Finish, 14.65″ Flute Length, 16.7323″ OAL, Straight-Cylindrical Shank, Series B275HPG
Item #: 38589974
Brand: Kennametal
Model #: 6349020
Product Specifications
| Overall Length (mm) | 425.00 |
| Flute Length (mm) | 372.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | B275HPG |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Drill Point Length (mm) | 1.61 |
| Drill Point Length (Decimal Inch) | 0.0635 |
| Overall Length (Decimal Inch) | 16.7323 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.00 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.00 |
| Flute Length (Decimal Inch) | 14.6500 |
| Flute By Diameter Ratio | 40xD |
| Maximum Drilling Depth (Decimal Inch) | 13.8583 |
| Maximum Drilling Depth (mm) | 352.00 |
| Material Grade | KCPK20 |
