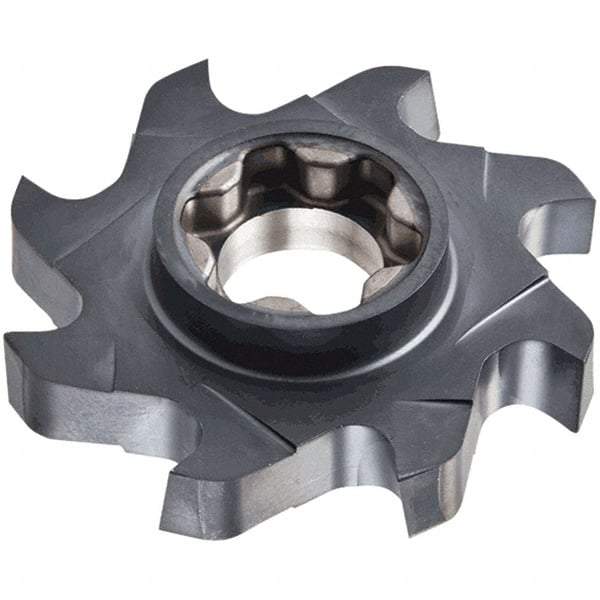

Iscar - SD D Grade IC908 Carbide T-Slot Milling Tip Insert - TiAlN Finish, 0.472" Cutting Diam
Item #: 38542890
Brand: Iscar
Model #: 3311781
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | T-Slot |
| Milling Tip Style | SD D |
| Milling Tip Type | T-Slot |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Cutting Width (mm) | 10.00 |
| Manufacturers Catalog Number | SD D50-10-R0.4-SP19 |
