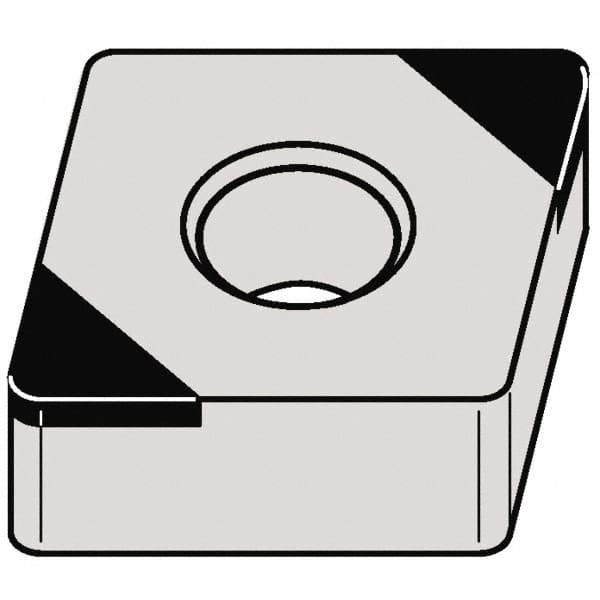

Kennametal - CNGA432 FWMT Grade KBH10 CBN Turning Insert - 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 38327151
Brand: Kennametal
Model #: 6295921
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CNGA |
| Insert Size | 432 |
| Material | CBN |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KBH10 |
| Chip Breaker | FWMT |
| Insert Length (Decimal Inch) | 0.5080 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNGA120408S01015FWMT |
| Lead Angle | -5.000 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNGA432S0415FWMT |
| Included Angle | 80 |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
