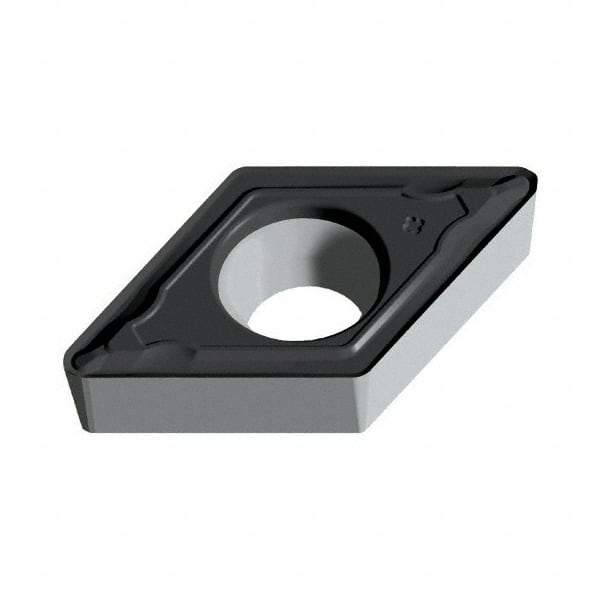

Walter - DCMT21.51 PF Grade WPP20S Carbide Turning Insert - 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.4mm Corner Radius
Item #: 38188181
Brand: Walter
Model #: 6965695
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (mm) | 7.75 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.40 |
| Manufacturer's Grade | WPP20S |
| Chip Breaker | PF |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
