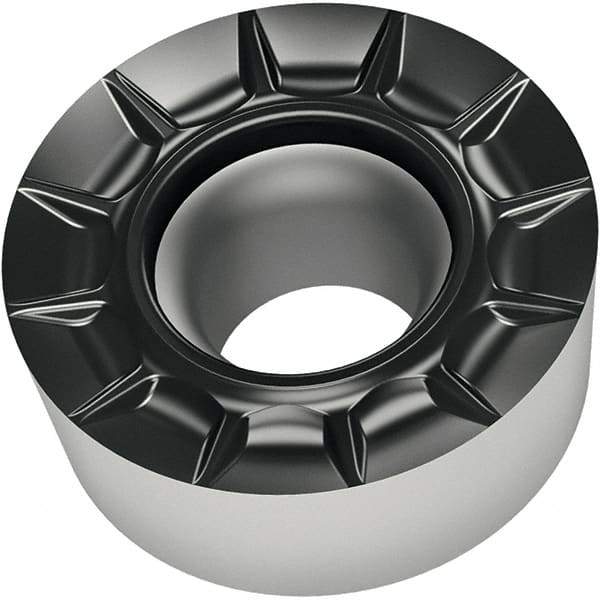

Walter - RCMT10T3M0 FM4 Grade WSM20S Carbide Turning Insert - Round, 10mm Inscr Circle, 5/32" Thick
Item #: 38188124
Brand: Walter
Model #: 6917264
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Thickness (Inch) | 5/32 |
| Thickness (mm) | 3.97 |
| Manufacturer's Grade | WSM20S |
| Chip Breaker | FM4 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Round |
