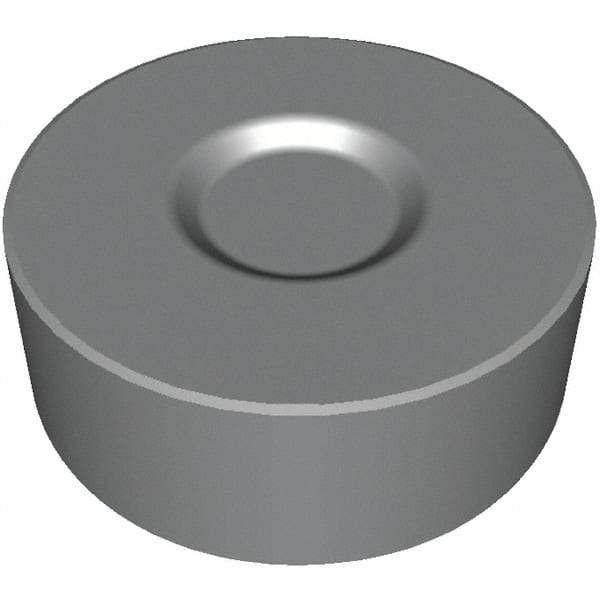

Kennametal - RNGX43 Grade KBK45 Carbide Turning Insert - TiN Finish, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 38170403
Brand: Kennametal
Model #: 6082235
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RNGX |
| Insert Size | 43 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | KBK45 |
| Coating | TiN |
| ISO Number | RNGX120400S02020 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | RNGX43S0820 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | KENDEX |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| Shape | Round |
