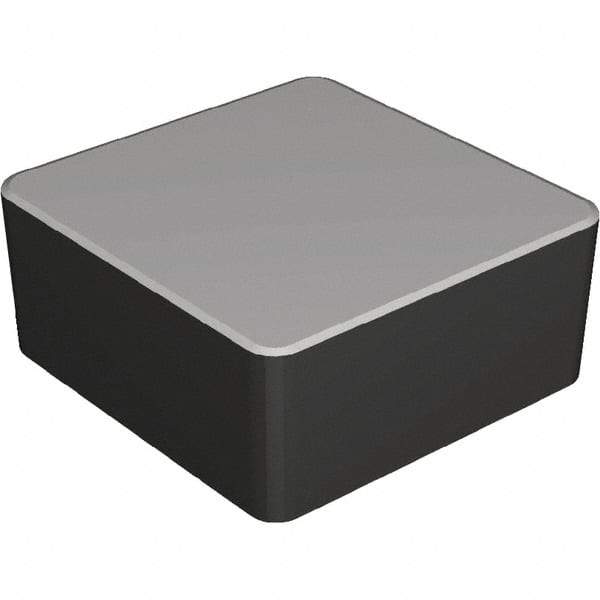

Kennametal - CNGN434 Grade KBK45 Carbide Turning Insert - TiN Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 38170312
Brand: Kennametal
Model #: 6082139
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGN |
| Insert Size | 434 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | KBK45 |
| Coating | TiN |
| Insert Length (mm) | 12.9000 |
| ISO Number | CNGN120416S02020 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CNGN434S0820 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | KENDEX |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| Shape | Diamond |
