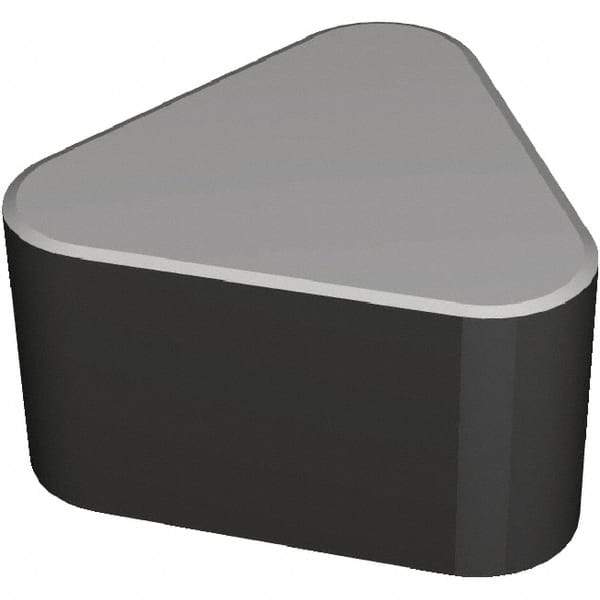

Kennametal - TNGN334 Grade KBK45 Carbide Turning Insert - TiN Finish, 60° Triangle, 3/8" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 38170239
Brand: Kennametal
Model #: 6082250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNGN |
| Insert Size | 334 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | KBK45 |
| Coating | TiN |
| Insert Length (mm) | 16-1/2 |
| ISO Number | TNGN160416S02020 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TNGN334S0820 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | KENDEX |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| Shape | Triangle |
