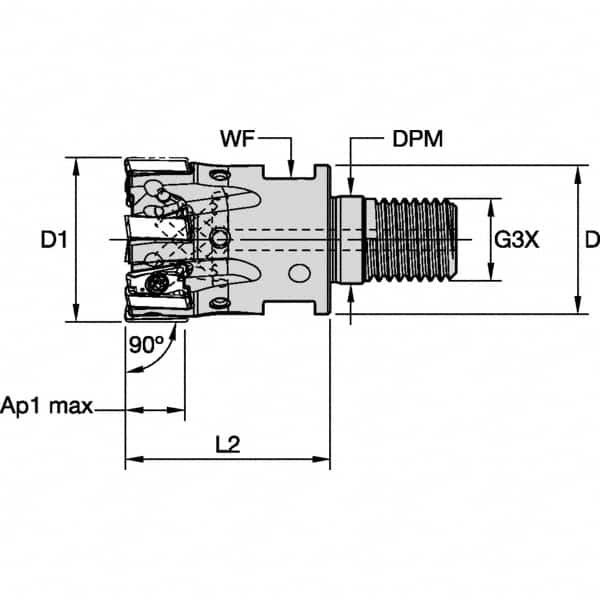

Kennametal - 20mm Cut Diam, 11mm Max Depth of Cut, 18mm Shank Diam, 48mm OAL, Indexable Square Shoulder End Mill - LNGU110408SRGE Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 4-11
Item #: 38159505
Brand: Kennametal
Model #: 6131682
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 18.00 |
| Overall Length/Projection (mm) | 48.00 |
| Lead Angle | 0 |
| Series | Mill 4-11 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 18.00 |
| Head Length (mm) | 28.00 |
| Weldon Flat | No |
| Insert Compatibility | LNGU110408SRGE |
| Shank Length (mm) | 20.00 |
| Maximum RPM | 40200 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 2.50 |
