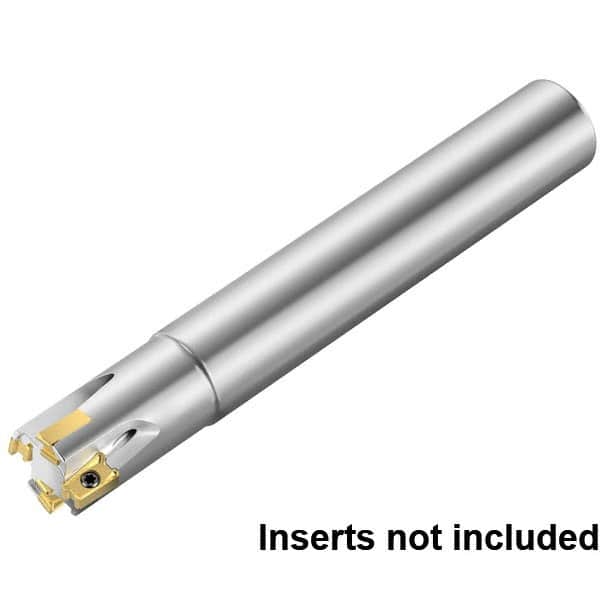

Kennametal - 5/8" Cut Diam, 11mm Max Depth of Cut, 5/8" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - LNGU110408SRGE Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series Mill 4-11
Item #: 38159372
Brand: Kennametal
Model #: 6140053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Inch) | 4 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 0 |
| Series | Mill 4-11 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 5/8 |
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Head Length (Inch) | 1 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | No |
| Insert Compatibility | LNGU110408SRGE |
| Shank Length (Inch) | 3 |
| Shank Length (Decimal Inch) | 3.0000 |
| Shank Length (mm) | 76.20 |
| Maximum RPM | 48000 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 3.00 |
