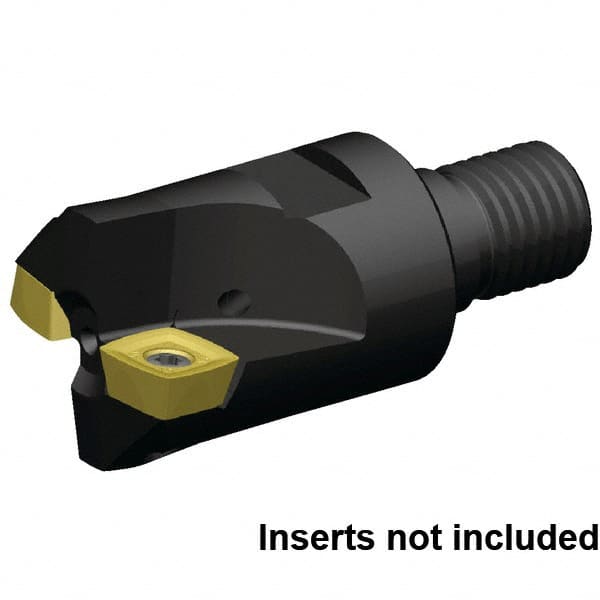

Kennametal - 32mm Cut Diam, 2.5mm Max Depth, M16 29mm Shank Diam, Modular Connection Indexable High-Feed End Mill - Screw Holding Method, XD..1205..R Insert, 7792VXD12 Toolholder, Through Coolant
Item #: 38068805
Brand: Kennametal
Model #: 5659132
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 29.00 |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 2 |
| Insert Style | XD..1205..R |
| Toolholder Style | 7792VXD12 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 2 |
| Maximum RPM | 31500 |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 66.00 |
| Modular Connection Thread Size | M16 |
