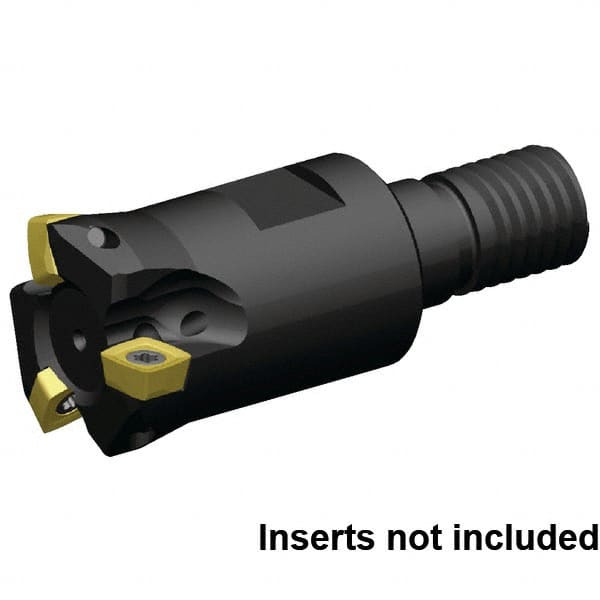

Kennametal - 20mm Cut Diam, 0.9mm Max Depth, M10 18mm Shank Diam, Modular Connection Indexable High-Feed End Mill - Screw Holding Method, XP..0603.R Insert, 7792VXP06 Toolholder, Through Coolant
Item #: 38068573
Brand: Kennametal
Model #: 5681122
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 18.00 |
| Modular Connection Size | M10 |
| Number of Cutter Inserts | 3 |
| Insert Style | XP..0603.R |
| Toolholder Style | 7792VXP06 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 3 |
| Maximum RPM | 57000 |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 54.00 |
| Modular Connection Thread Size | M10 |
