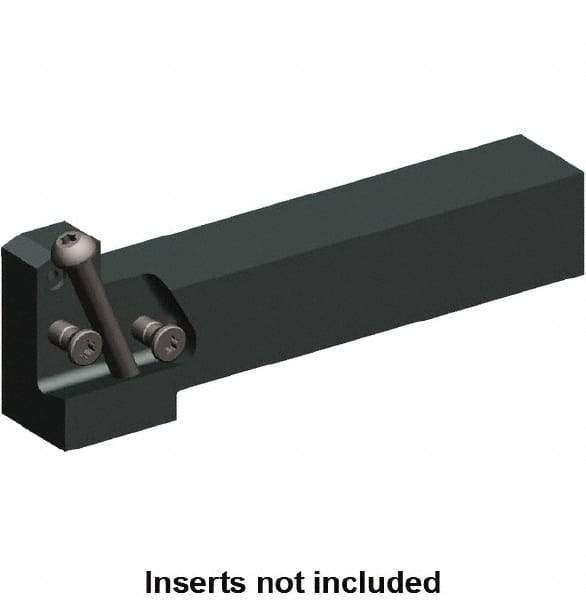

Kennametal - Left Hand Cut, 1" Max Workpc Diam, Beyond Evolution Blades Insert, Indexable Cutoff Toolholder - 1" Max Depth of Cut, 1" Shank Width, 25.4mm Shank Height, 139.9mm OAL
Item #: 38039004
Brand: Kennametal
Model #: 5979195
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Workpiece Diameter (Inch) | 1 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0000 |
| Series | Beyond Evolution |
| Toolholder Style | KGMS |
| Insert Compatibility | Beyond Evolution Blades |
| Overall Length (mm) | 139.90 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Through Coolant | Yes |
| Shank Length (mm) | 108.21 |
| Height to Shank Top (mm) | 25.40 |
