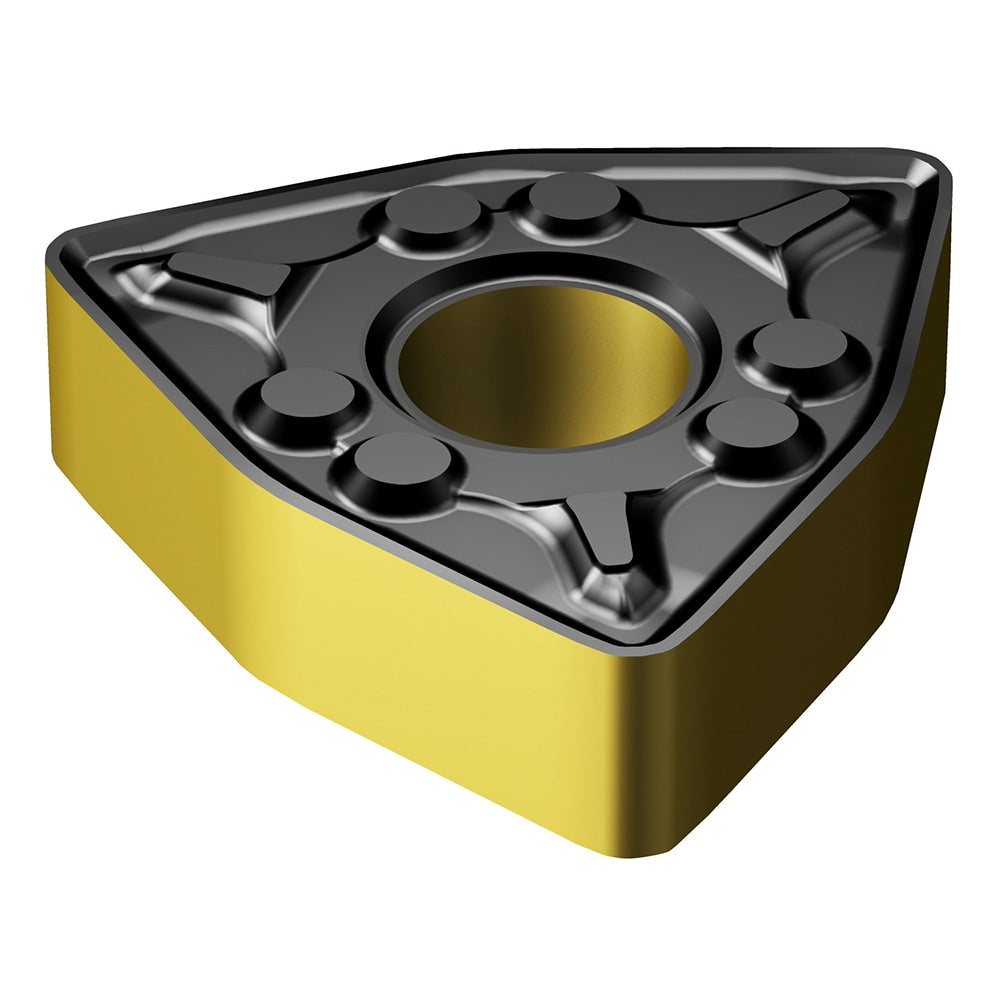

Turning Insert: WNMG332-WMX 4405, Carbide
Item #: 01227537
Brand: Sandvik Coromant
Model #: 8322678
Product Specifications
| ANSI Insert Code | WNMG332 |
| ISO Insert Code | WNMG060408 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | 4405 |
| Coating/Finish | TiCN/Al2O3/TiN |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Wiper - Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | WNMG 06 04 08-WMX 4405 |
| Manufacturers Catalog Number | WNMG 332-WMX 4405 |
| Chip Breaker | WMX |
| ANSI Size Code | 332 |
| ISO Size Code | 060408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 0604 |
