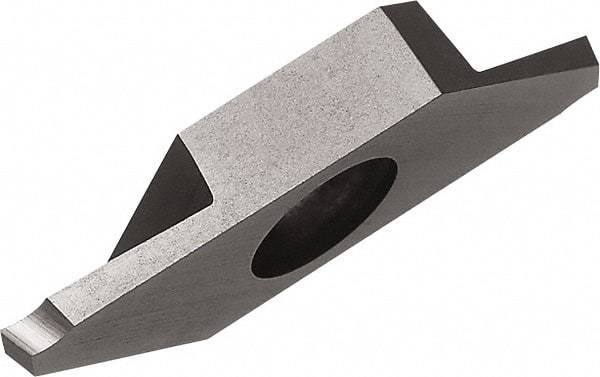

Kyocera - TKF S PR1225 Grade, 0.0787" Cutting Width, Carbide Cutoff Insert - 16° Right Hand Lead Angle, 0.002" Cnr Rad, Megacoat Coated
Item #: 37968724
Brand: Kyocera
Model #: 8835405
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TKF |
| Insert Size | 16 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 16 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Series | TKF |
| Chipbreaker | S |
| Full Radius | Yes |
| Multi-Use Application | Cut-Off; Grooving |
| Coating Process | PVD |
| Cutting Height (mm) | 9.50 |
| Cutting Height (Decimal Inch) | 0.3740 |
| Corner Radius (Decimal Inch) | 0.001969 |
| Corner Radius (mm) | 0.05 |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
| Width Tolerance | 0.03 (mm) |
| Manufacturers Catalog Number | TKF16L200-S-16DR |
