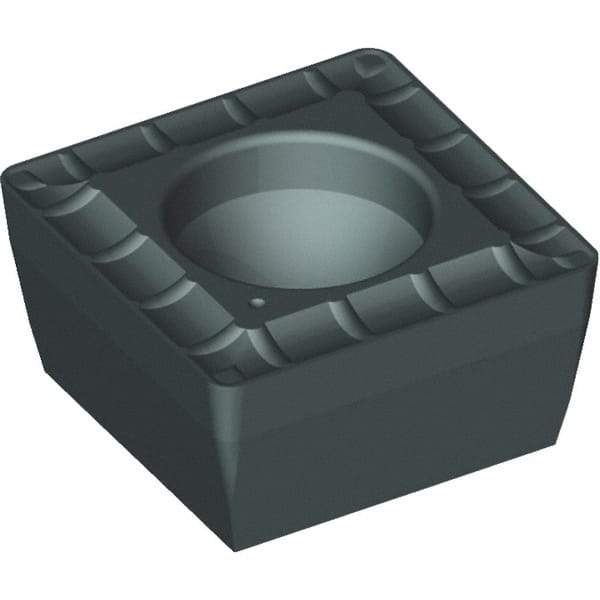

Kennametal - SP..X..070304 MD Grade KCPK10 Carbide Indexable Drill Insert - Al2O3 Finish, Square, 2.85mm Inscribed Circle
Item #: 37892775
Brand: Kennametal
Model #: 5878707
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SP..X.. |
| Insert Size | 070304 |
| Material | Carbide |
| Manufacturer's Grade | KCPK10 |
| Inscribed Circle (mm) | 2.85 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.40 |
| Shape | Square |
| Length (mm) | 7.90 |
| Hole Diameter (mm) | 2.85 |
| Hole Diameter (Decimal Inch) | 0.1120 |
| Included Angle | 90 |
| Coating | Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Chipbreaker | MD |
