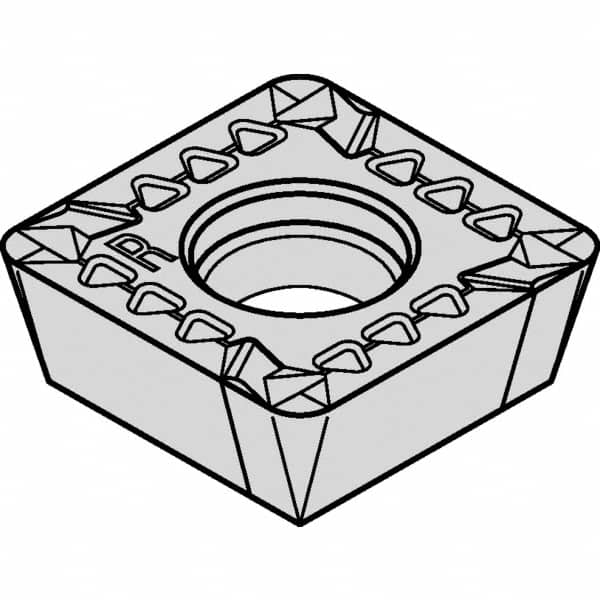

Kennametal - SDET43 GB2 Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 3/16" Thick, 1/2" Inscribed Circle
Item #: 37856713
Brand: Kennametal
Model #: 6111674
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDET |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Length (Inch) | 1/2 |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 4.40 |
| Relief Angle | 15.000 |
| Rake Angle | 5 |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | GB2 |
| ISO Number | SDET1204PDSRGB2 |
| ANSI Number | SDET43PDSR8GB2 |
