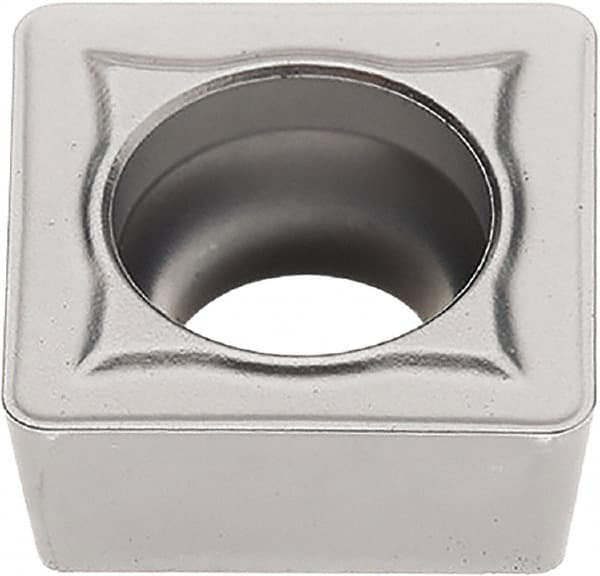

Seco - SCMT09T308 M3 Grade TK1501 Carbide Turning Insert - Ti(C/N)/Al2O3/Cr Finish, 90° Square, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 37816485
Brand: Seco
Model #: 46663
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 09T308 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3748 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | TK1501 |
| Coating | Ti(C/N)/Al2O3/Cr |
| Material Grade | K20 |
| Chip Breaker | M3 |
| Insert Length (Decimal Inch) | 0.3748 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Lead Angle | 75.000 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Primary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Square |
