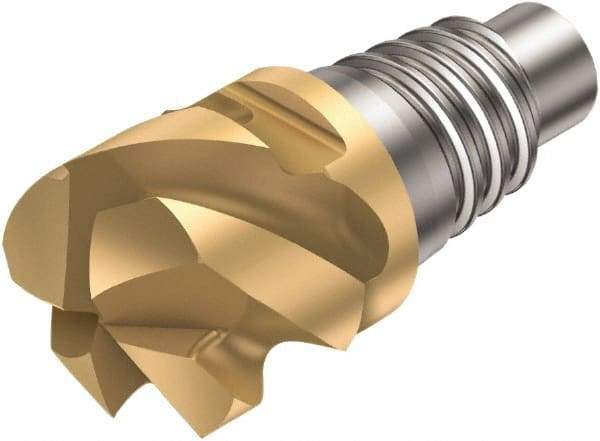

Sandvik Coromant - 31625HM Straight Grade 1030 Carbide High Feed Milling Tip Insert - 4 Flutes, 25mm Cutting Diam, 13.5mm Depth of Cut, 0.1181" Cnr Rad, 50° Helix
Item #: 37804630
Brand: Sandvik Coromant
Model #: 5782719
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | 31625HM |
| Milling Tip Type | High Feed |
| Material | Carbide |
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 13.50 |
| Depth of Cut (Decimal Inch) | 0.5315 |
| Number of Flutes | 4 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Coating Process | PVD |
| Chipbreaker | Straight |
| Lead Angle | 31.57 |
| Helix Angle | 50 |
| Style | 316..HM. |
| Manufacturers Catalog Number | 5782719 |
