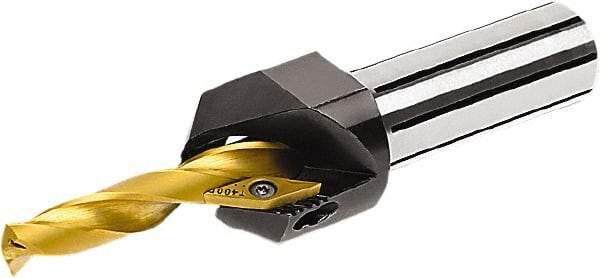

Seco - 0.473 to 0.551" Diam, Straight Shank, 3/4" Body Shank Diam, 45° Combo Chamfer and Countersink Drill - SD200-C45 Insert, 2.83" OAL
Item #: 37765187
Brand: Seco
Model #: 24479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (Decimal Inch) | 0.5510 |
| Minimum Drill Diameter (Decimal Inch) | 0.4730 |
| Body Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 1 |
| Insert Style | SD200-C45 |
| Chamfer Angle | 45 |
| Body Diameter (Decimal Inch) | 1.2000 |
| Overall Length (Decimal Inch) | 2.8300 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shank Length (Decimal Inch) | 1.8300 |
| Through Coolant | NonThrough Coolant |
| Series | Seco Feedmax |
| Includes | Cassette; Insert Key; Locking Screw; Module Key; Stop Screw |
