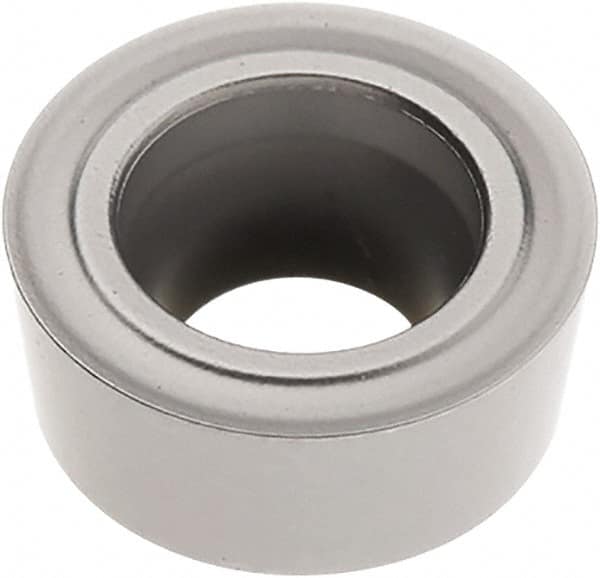

Seco - RCMT1204M0 F1 Grade TK1501 Carbide Turning Insert - Ti(C/N)/Al2O3/Cr Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 37752268
Brand: Seco
Model #: 46544
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Length (mm) | 12.00 |
| Length (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | TK1501 |
| Coating | Ti(C/N)/Al2O3/Cr |
| Material Grade | K20 |
| Chip Breaker | F1 |
| Insert Length (Decimal Inch) | 0.4724 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| ISO Number | RCMT1204M0-F1 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Duratomic |
| Primary Workpiece Material | K |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Round |
