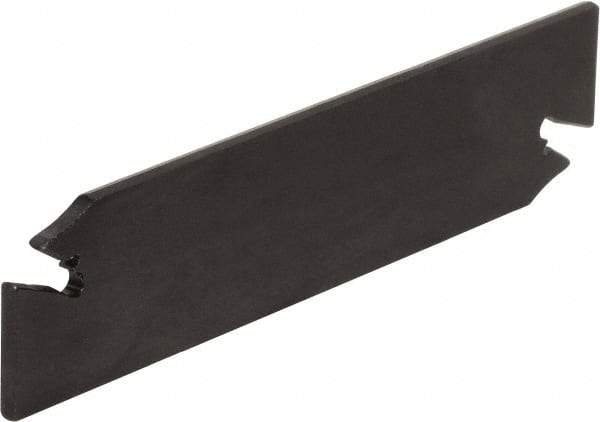

Kyocera - 1.0236" Blade Height, 0.0709" Blade Width, 4.3307" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - KTKB Blade, KTB-S Series
Item #: 37728151
Brand: Kyocera
Model #: 8801633
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 1.80 |
| Blade Width (Decimal Inch) | 0.0709 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Style | KTKB |
| Insert Style | TK2-P; TKN 2; TKN 2.4; TKN 2-P; TKR/L 2; TKR/L 2.4 |
| Series | KTB-S |
| Tool Block/Toolholder Style | KTKTB |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9685 |
| Maximum Workpiece Diameter (mm) | 50 |
| Cutting Height (mm) | 21.40 |
| Cutting Height (Decimal Inch) | 0.8425 |
| Minimum Insert Width (mm) | 2.20 |
| Minimum Insert Width (Decimal Inch) | 0.0866 |
| Maximum Insert Width (mm) | 2.40 |
| Maximum Insert Width (Decimal Inch) | 0.0945 |
| Complete Insert Compatibility | TK2-P; TKN 2; TKN 2.4; TKN 2-P; TKR/L 2; TKR/L 2.4 |
| Complete Tool Block/Toolholder Style Compatibility | KTKTB 16-26; KTKTB 20-26 |
| Manufacturers Catalog Number | KTKB262S |
| Insert Type | TKN |
| Type | Cut-Off Blade |
