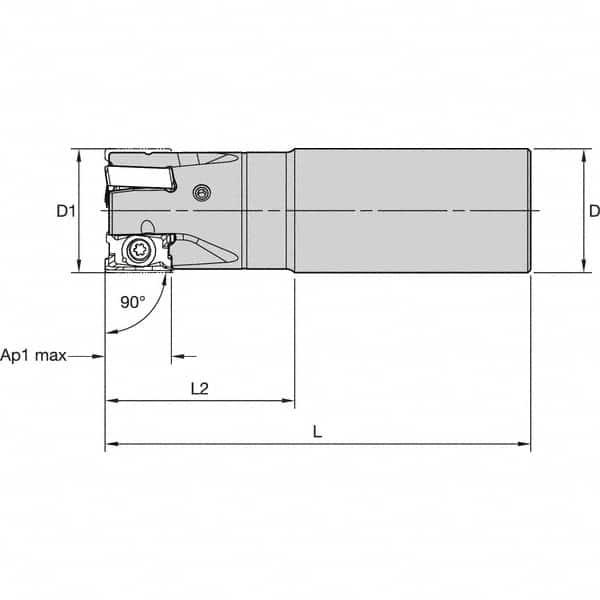

Kennametal - 32mm Cut Diam, 15.5mm Max Depth of Cut, 32mm Shank Diam, 200mm OAL, Indexable Square Shoulder End Mill - LNGU15T608SRGE Inserts, Cylindrical Shank, 0° Lead Angle, Through Coolant, Series MILL 4-15
Item #: 37640000
Brand: Kennametal
Model #: 5531918
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Overall Length/Projection (mm) | 200.00 |
| Lead Angle | 0 |
| Series | MILL 4-15 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 32.00 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2600 |
| Head Length (mm) | 50.00 |
| Head Length (Decimal Inch) | 1.9690 |
| Weldon Flat | No |
| Insert Compatibility | LNGU15T608SRGE |
| Shank Length (Decimal Inch) | 5.9050 |
| Shank Length (mm) | 150.00 |
| Maximum RPM | 22000 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1570 |
