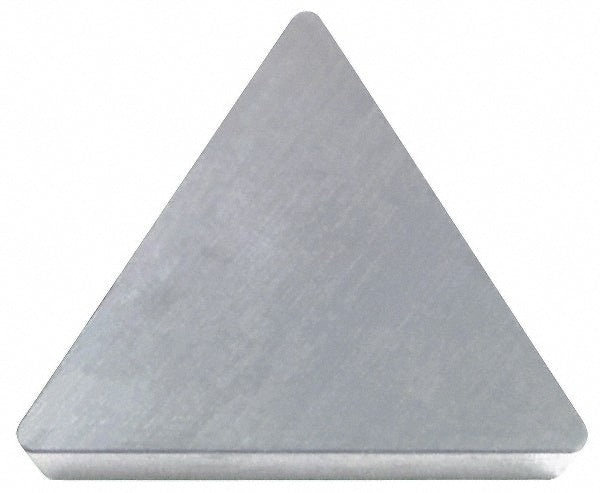

Brand: Sumitomo / Part #: 16CD431
Item #: 02253862
Brand: Sumitomo
Model #: 16CD431
Product Specifications
| Insert Style | TPGA |
| Insert Shape Code | T |
| Insert Size Code | 221 |
| Insert Shape | Triangle |
| Coating/Finish | Coated |
| Manufacturer Grade | DA2200 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Polycrystalline Diamond |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | P |
| Tolerance Code | G |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TP |
| Rake | Neutral |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | TPGA221 |
| Iso Code | TPGW110304 |
| Standards | ISO 13399; ANSI |
| Single or Multi Tipped | Single Tipped |
| Chip Breaker | A |
| Rake Angle | 0 |
