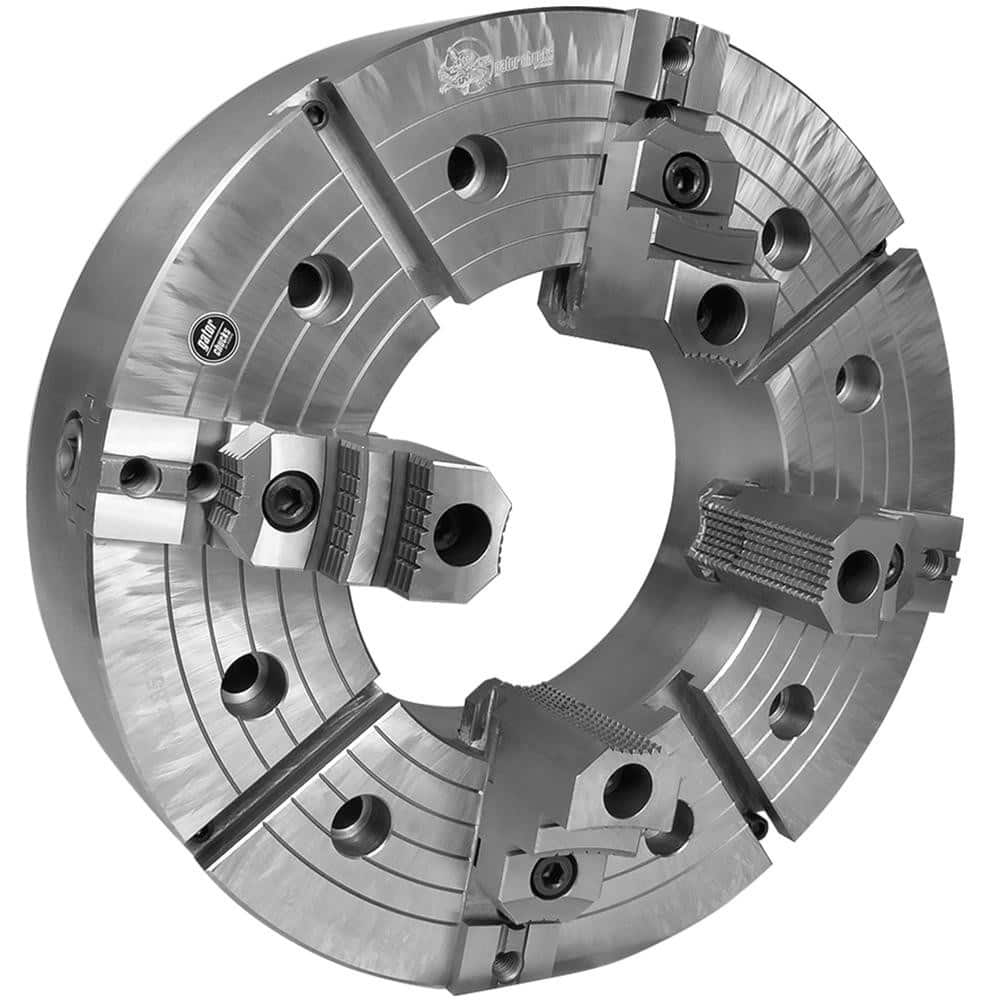

Independent Manual Lathe Chuck: 4-Jaw, 25″ Dia Two-Piece Jaws, Direct Mount, 850 Max RPM
Item #: 37046240
Brand: Gator Lathe Chucks
Model #: 1-317-2520
Product Specifications
| Chuck Type | Independent |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 12.5500 |
| Chuck Diameter (Decimal Inch) | 25.0000 |
| Chuck Diameter (Inch) | 25 |
| Minimum Jaw Capacity (Inch) | 3.9400 |
| Minimum Jaw Capacity (mm) | 3.94 |
| Maximum Jaw Capacity (mm) | 24.80 |
| Maximum Jaw Capacity (Inch) | 24.8000 |
| Jaw Height (Decimal Inch) | 3.5710 |
| Maximum Rpm | 850 |
| Mount Type | Direct |
| TIR Repeatability (Decimal Inch) | 0.0040 |
| Number Of Jaws | 4 |
| Contents | Chuck Mounting Bolts; (1) Set of HD Master & Hard Top Reversible Jaws; Eye Bolts; Chuck Wrench; Hex Keys |
