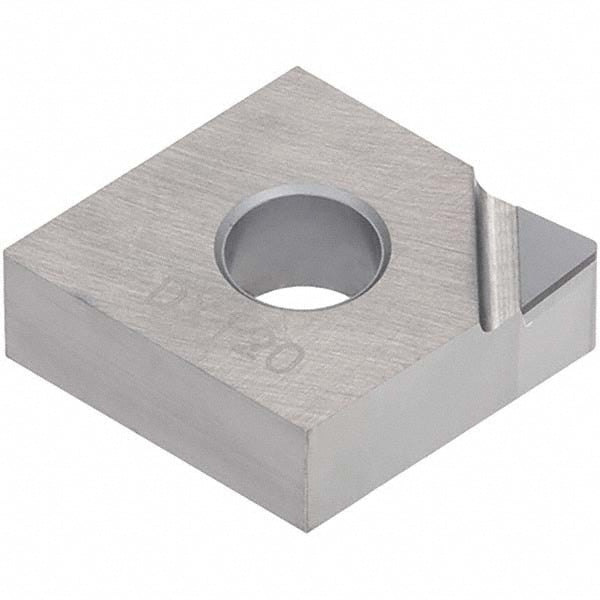

Turning Insert: CNMM 432 DIA DX120
Item #: 70856794
Brand: Tungaloy
Model #: 6967607
Product Specifications
| ANSI Insert Code | CNMM432 |
| ISO Insert Code | CNMM120408 |
| Insert Style | CNMM |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | DX120 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | CNMM |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 1 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.1340 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | CNMM 432 DIA |
| Standards | ISO |
| Chip Breaker | DIA |
| ANSI Size Code | 432 |
| ISO Size Code | 120408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
