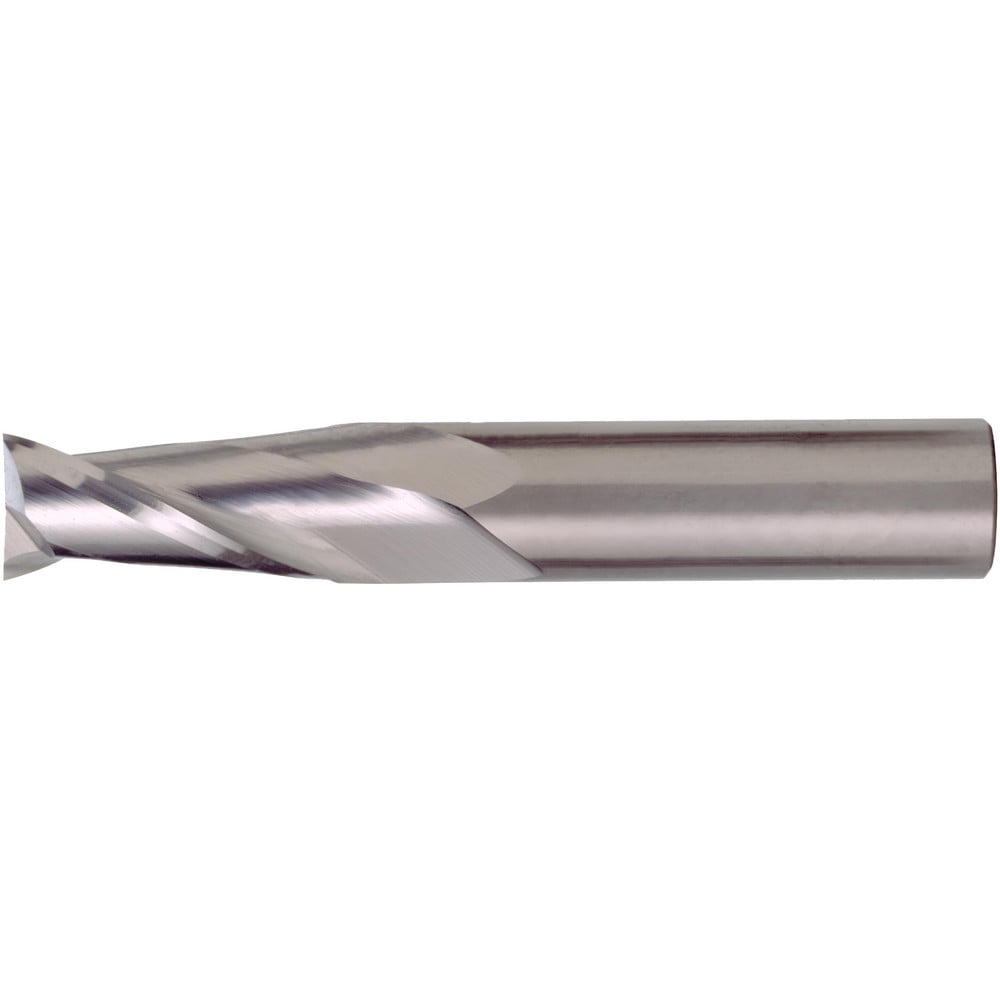

Square End Mill: 7/8" Dia, 2-1/4" LOC, 2 Flute, Solid Carbide
Item #: 67120501
Brand: Cleveland
Model #: C61076
Product Specifications
| Mill Diameter (mm) | 22.23 |
| Mill Diameter (Decimal Inch) | 0.8750 |
| Mill Diameter (Inch) | 7/8 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.2500 |
| Length of Cut (Inch) | 2-1/4 |
| Length of Cut (mm) | 57.15 |
| Shank Diameter (mm) | 22.22 |
| Shank Diameter (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-SE-2 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 22.23 |
| Mill Diameter (Decimal Inch) | 0.8750 |
| Mill Diameter (Inch) | 7/8 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.2500 |
| Length of Cut (Inch) | 2-1/4 |
| Length of Cut (mm) | 57.15 |
| Shank Diameter (mm) | 22.22 |
| Shank Diameter (Inch) | 7/8 |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Long |
| Series | CEM-SE-2 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 67120501 |
| Mfr Part # | C61076 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
