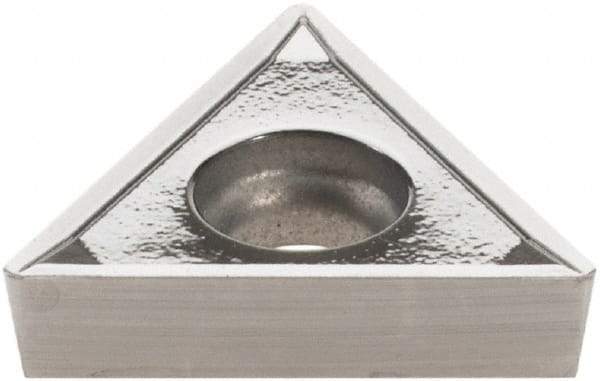

Komet - TOGX140304 12 Grade K10 Carbide Boring Insert - Uncoated, 60° Triangle, 8° Relief Angle, 8.2mm Inscr Circle, 3mm Thick, 0.41mm Corner Radius
Item #: 36862266
Brand: Komet
Model #: W57261200423
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TOGX |
| Insert Size | 140304 |
| Manufacturer's Grade | K10 |
| Inscribed Circle (mm) | 8.20 |
| Inscribed Circle (Decimal Inch) | 0.3230 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1180 |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | Uncoated |
| Chipbreaker | 12 |
| Length (mm) | 13.61 |
| Length (Decimal Inch) | 0.5360 |
| Rake | Positive |
| Rake Angle | 30 |
| Relief Angle | 8 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Triangle |
