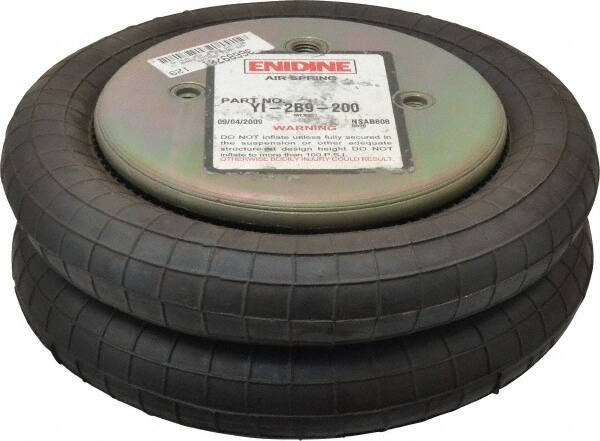

Value Collection - 100 psi Actuation: 540 Lb Ext, 5,435 Lb Compr, 3/8-16 & 3/8-16, 8" Stroke Len, Bellow Double Convolute Air Spring - 11-1/2" Extended Height, 3-1/2" Compressed Height, 10.3" Max OD at 100 psi, 250 to 3,615 Lb Capacity
Item #: 36689701
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Bellow Style Double Convolute |
| Actuation Force @100 PSI (Lb.) Compressed | 5435 |
| Actuation Force @ 100 PSI (Lb.) Extended | 540 |
| A | 6.40 |
| B | 3.50 |
| Thread Size C | 3/8-16 |
| Thread Size D | 3/8-16 |
| Compressed Height (Decimal Inch) | 3-1/2 |
| Extended Height (Decimal Inch) | 11.50 |
| Minimum Load Capacity (Pounds) | 520.00 |
| Maximum Load Capacity (Pounds) | 3615.00 |
| Maximum Outside Diameter 100PSI | 10.30 |
| Stroke Length (Decimal Inch) | 8.00 |
| E | 1.75 |
| Pressure | 100 |
