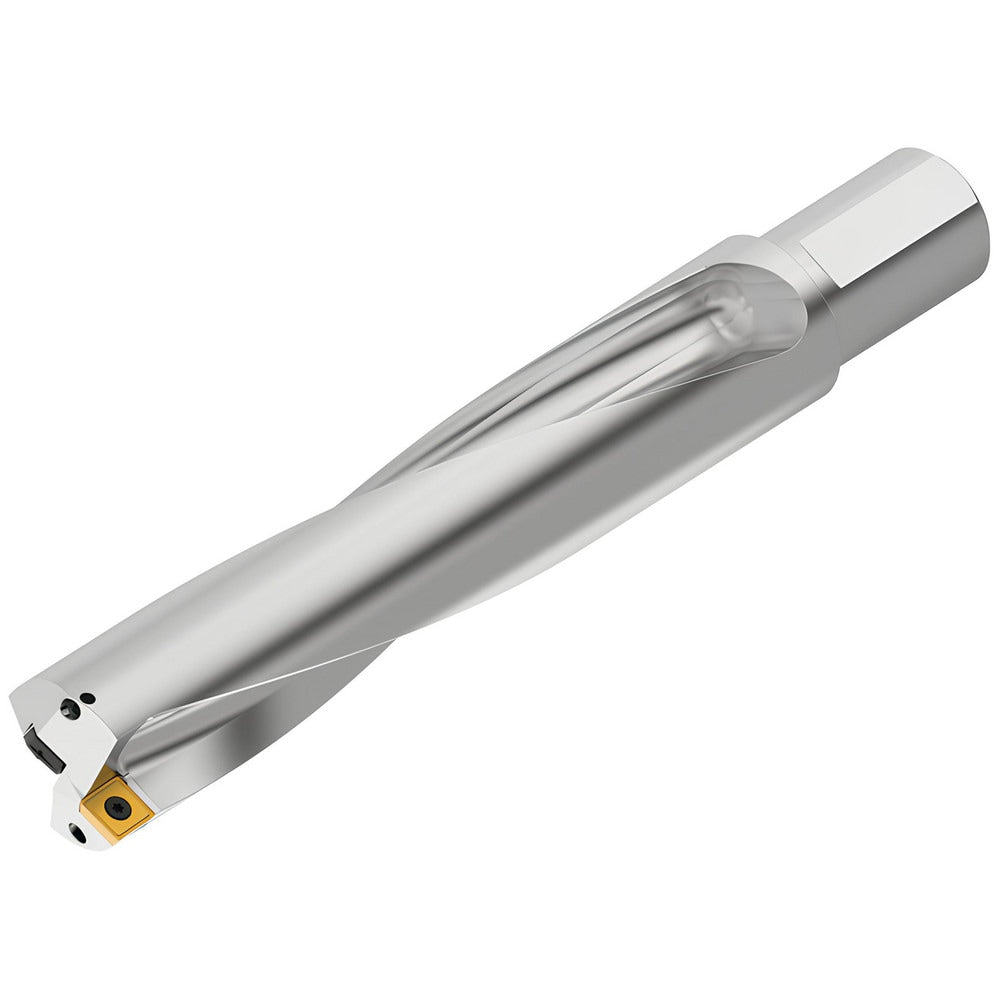

Indexable Insert Drill: DFPR2250R5WB200, 58.15 mm Max Dia, 285.75 mm Max Depth, 5xD, 50.80 mm Shank Dia
Item #: 04932398
Brand: Kennametal
Model #: 7030801
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 58.15 |
| Maximum Drill Diameter (Decimal Inch) | 2.2890 |
| Maximum Drill Depth (Inch) | 11-1/4 |
| Maximum Drill Depth (Decimal Inch) | 11.2500 |
| Maximum Drill Depth (mm) | 285.75 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (mm) | 50.80 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 200608; 180610 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 15.6980 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 11.2500 |
| Flute Length (mm) | 290.75 |
| Body Length | 398.75 |
| Body Length (Decimal Inch) | 12.5490 |
| Shank Length (Decimal Inch) | 3.1490 |
| Shank Length (mm) | 80.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.7360x0.2440; 0.8070x0.2440 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR180610__O; DFPR200608__I |
| Collar Diameter (Decimal Inch) | 2.1909 |
| Collar Diameter (mm) | 55.65 |
| Body Side Coolant Hole Thread Size (Inch) | 1/4-18 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M6-1.0x14T25 |
| Coolant Through | Yes |
