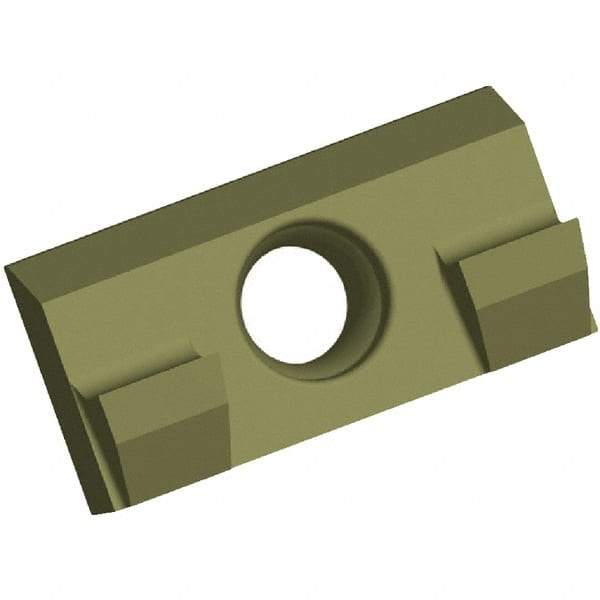

Kennametal - KGIP0.5040 GD Grade KCU45 Carbide Milling Insert - AlTiN Finish, 0.111" Thick
Item #: 36650836
Brand: Kennametal
Model #: 5134141
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KGIP |
| Insert Size | 0.5040 |
| Material | Carbide |
| Manufacturer's Grade | KCU45 |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.1250 |
| Length (Decimal Inch) | 0.5040 |
| Thickness (Decimal Inch) | 0.1110 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 3.000 |
| Rake Angle | 4 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Irregular |
| Insert Hand | Neutral |
| Chipbreaker | GD |
| Maximum Depth of Cut (mm) | 1.33 |
| Maximum Depth of Cut (Decimal Inch) | 0.0520 |
