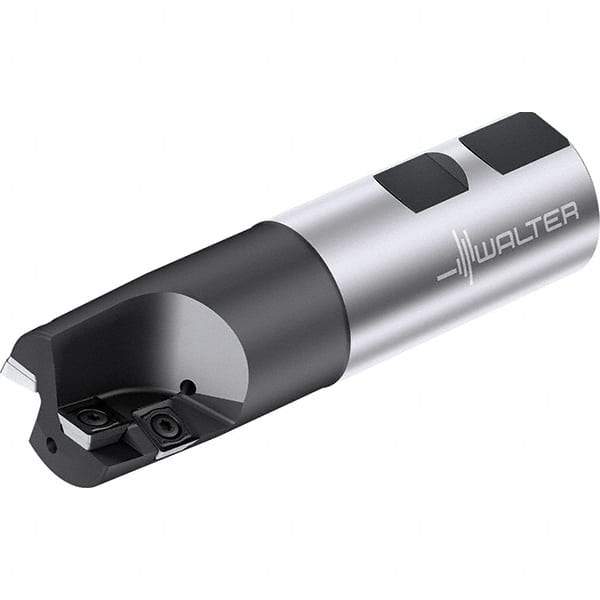

Walter - 1" Cut Diam, 13.3mm Max Depth of Cut, 1" Shank Diam, 100.94mm OAL, Indexable Square Shoulder End Mill - Weldon Shank, 0° Lead Angle, Through Coolant, Series M4792-UW
Item #: 36590875
Brand: Walter
Model #: 6866261
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 100.94 |
| Overall Length/Projection (Decimal Inch) | 3.9740 |
| Lead Angle | 0 |
| Series | M4792-UW |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 13.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.524 |
| Number of Cutter Inserts | 1 |
| Number of Flutes | 1 |
| Maximum RPM | 999999 |
| Toolholder Material | Steel |
