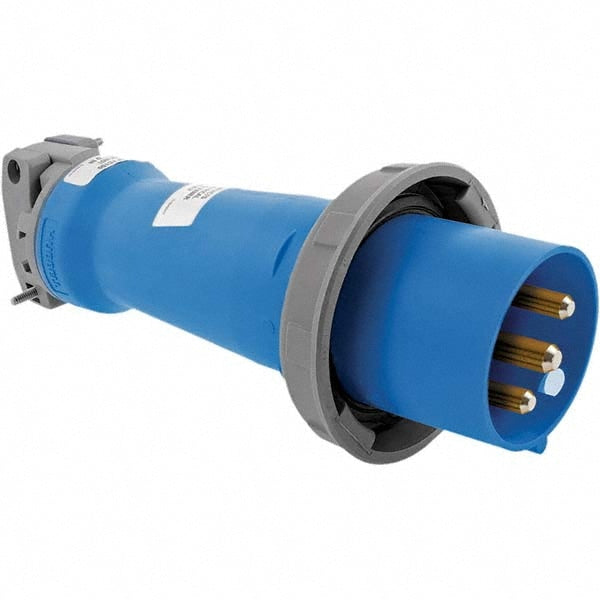

Pin & Sleeve Plugs & Connectors; Pin Configuration: 3; Number Of Poles: 2; Amperage: 60.0000; Voltage: 250.00; Housing Material: Nylon; Minimum Cord Grip Diameter: 0.5 in; Pin Material: Brass; Maximum Cord Grip Diameter: 1.45 in
Item #: 05393186
Brand: Hubbell Wiring Device-Kellems
Model #: HBL360P6W
Product Specifications
| Pin Configuration | 3 |
| Number Of Poles | 2 |
| Amperage | 60.0000 |
| Voltage | 250.00 |
| Housing Material | Nylon |
| Minimum Cord Grip Diameter | 0.5 in |
| Pin Material | Brass |
| Maximum Cord Grip Diameter | 1.45 in |
| Plug Diameter | 2.72 in |
| Sleeve Length | 10.14 in |
| Overall Length | 10.15 |
| Overall Width | 3 |
| Face Diameter | 2.72 in |
| Grounding Style | Self-Grounding |
| Resistance Features | Watertight |
| Ingress Protection Rating | IP69K |
| Color | Blue |
| Number Of Phases | 1 |
| Standards | IEC 60309-2; UL Listed; IEC 60309-1; CSA Certified |
| Nema Configuration | UL Type 4X; UL Type 12 |
| UNSPSC Code | 39121400 |
