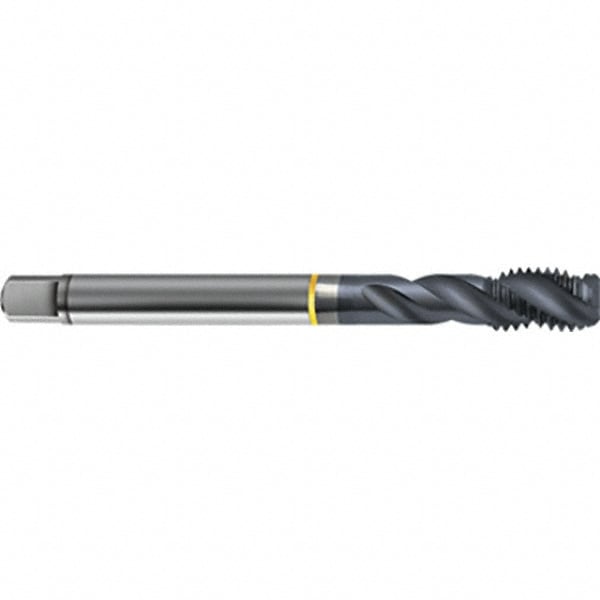

Spiral Flute Tap: UNF, 4 Flute, Modified Bottoming, 2B/3B Class of Fit, High-Speed Steel, Ignator Finish
Item #: 04633913
Brand: Guhring
Model #: 9048824222250
Product Specifications
| Thread Size (Inch) | 7/8-14 |
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Thread Limit | H4 |
| Class Of Fit | 2B/3B |
| Coating/Finish | Proprietary |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Material Application | Cutting Steel; Alloy Steel; Aluminum; Stainless Steel; Cast Iron; Steel; Hardened Steel |
| Flute Direction | Right Hand |
| Helix Angle | 40 |
| Proprietary Coating/Finish | Ignator |
| Oversize | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel |
| Threads per Inch | 14 |
| Thread Length (Decimal Inch) | 0.7480 |
| Overall Length (Decimal Inch) | 4.6890 |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Primary Workpiece Material Code | P; K; M; N |
| Application | Blind Hole Threading |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Tapping Depth (Decimal Inch) | 0.8030 |
| Square Size (Decimal Inch) | 0.5230 |
| Flute Style | Spiral |
| Series | 4882 |
| UNSPSC Code | 23241600 |
