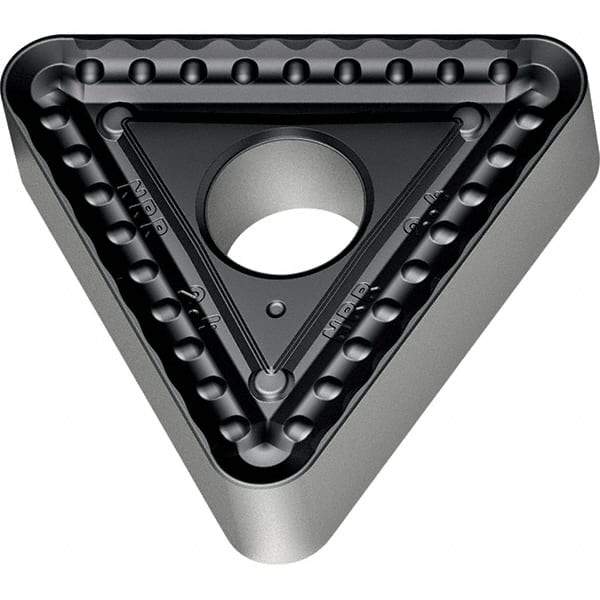

Walter - TNMM544 NRR Grade WPP30S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 36324960
Brand: Walter
Model #: 6154233
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMM |
| Insert Size | 544 |
| Material | Carbide |
| Length (mm) | 27.00 |
| Length (Decimal Inch) | 1.0630 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | WPP30S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P30 |
| Chip Breaker | NRR |
| ISO Number | TNMM270616-NRR |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TNMM544-NRR |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
