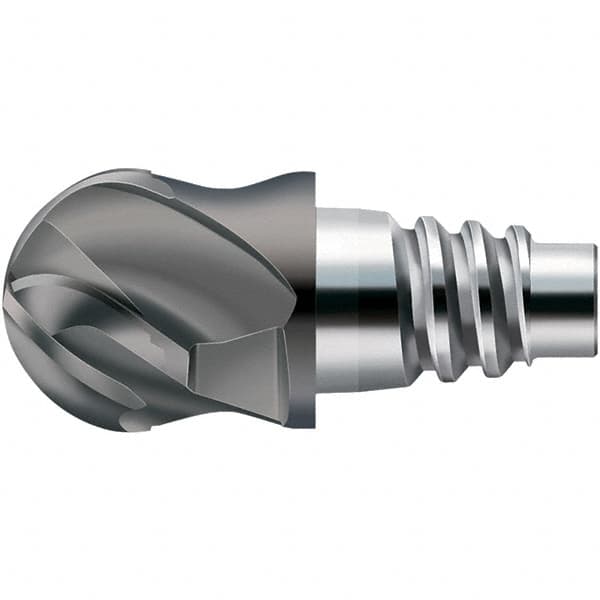

Walter-Prototyp - H8E Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 4 Flutes, 25mm Cutting Diam, 13.5mm Depth of Cut, 25.6mm Extension, 0.4921" Cnr Rad
Item #: 36271955
Brand: Walter-Prototyp
Model #: 5627131
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | ConeFit; Protostar N 40 |
| Milling Tip Style | H8E |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Depth of Cut (mm) | 13.50 |
| Depth of Cut (Decimal Inch) | 0.5315 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.4921 |
| Coating Process | PVD |
| Extension From Holder (mm) | 25.60 |
| Extension From Holder (Decimal Inch) | 1.0079 |
| Style | H8E11118 |
