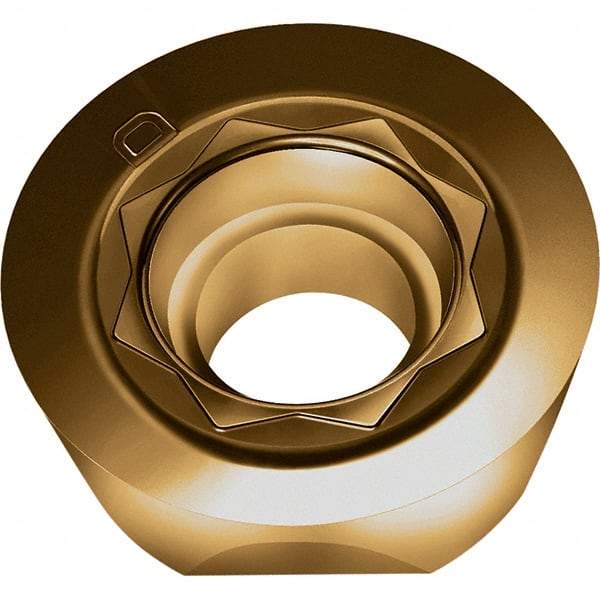

Walter - ROHX1204M0 D67 Grade WKP35S Carbide Milling Insert - TiCN/Al2O3/TiCN Finish, 0.1874" Thick, 0.4705" Inscribed Circle
Item #: 36267607
Brand: Walter
Model #: 5888060
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ROHX |
| Insert Size | 1204M0 |
| Material | Carbide |
| Material Grade | P35/K35 |
| Manufacturer's Grade | WKP35S |
| Coating | TiCN/Al2O3/TiCN |
| Inscribed Circle (Decimal Inch) | 0.4705 |
| Thickness (Decimal Inch) | 0.1874 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | D67 |
| Manufacturers Catalog Number | ROHX1204M0-D67 |
