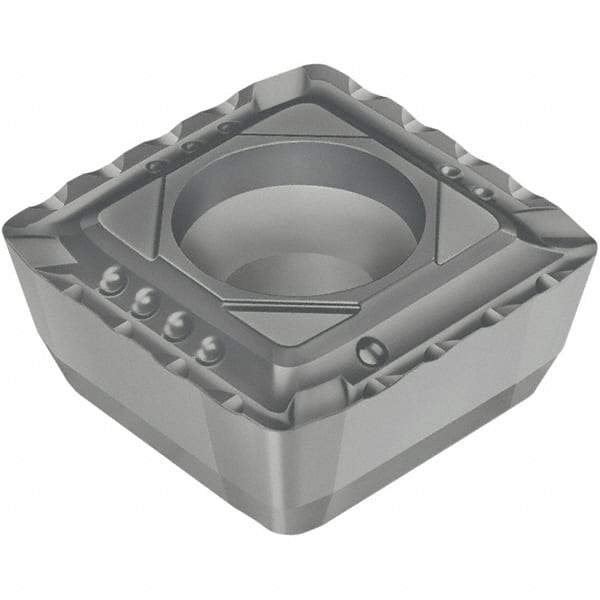

Walter - P4842 E67 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Square, 5.94mm Inscribed Circle
Item #: 36261436
Brand: Walter
Model #: 6154405
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | P484 |
| Insert Size | 2 |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Inscribed Circle (mm) | 5.94 |
| Inscribed Circle (Decimal Inch) | 0.2340 |
| Thickness (mm) | 2.39 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (mm) | 0.33 |
| Corner Radius (Decimal Inch) | 0.0130 |
| Shape | Square |
| Coating | TiCN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E67 |
