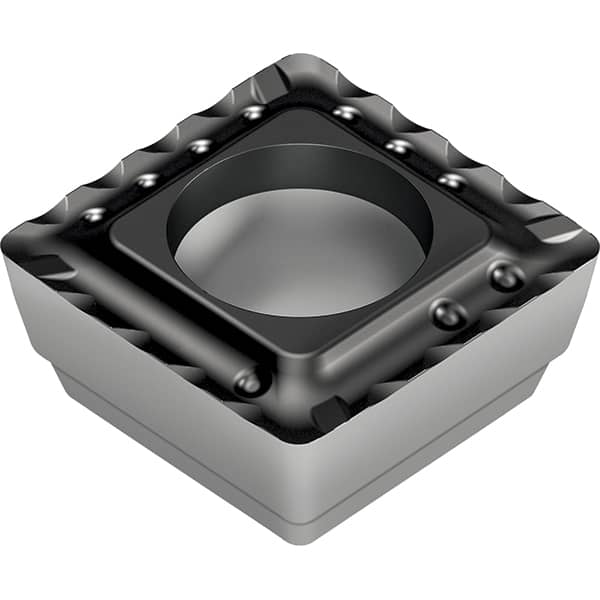

Walter - P4843 E67 Grade WKP35S Carbide Indexable Drill Insert - 2.8mm Thick, TiCN/Al2O3/TiN Finish, Square, 6.5mm Inscribed Circle, 0.4mm Corner Radius
Item #: 36261196
Brand: Walter
Model #: 6171334
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 3-0 |
| Material | Carbide |
| Length (mm) | 9.70 |
| Length (Decimal Inch) | 0.3820 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC520N |
| Coating | TiCN/TiN |
| Chip Breaker | FFA |
| ISO Number | CCMT 3-0-FFA |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6171334 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | CVD |
| Coating | TiCN/Al2O3/TiN |
| Chipbreaker | E67 |
| Inscribed Circle (mm) | 6.50 |
| Inscribed Circle (Decimal Inch) | 0.2559 |
| Material Grade | P35/K35 |
| Material | Carbide |
| Manufacturer's Grade | WKP35S |
| Insert Style | P484 |
| Insert Size | 3 |
| Thickness (mm) | 2.80 |
| Thickness (Decimal Inch) | 0.1102 |
| Shape | Square |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Multi Use Application | Turning |
| Shape | Diamond |
