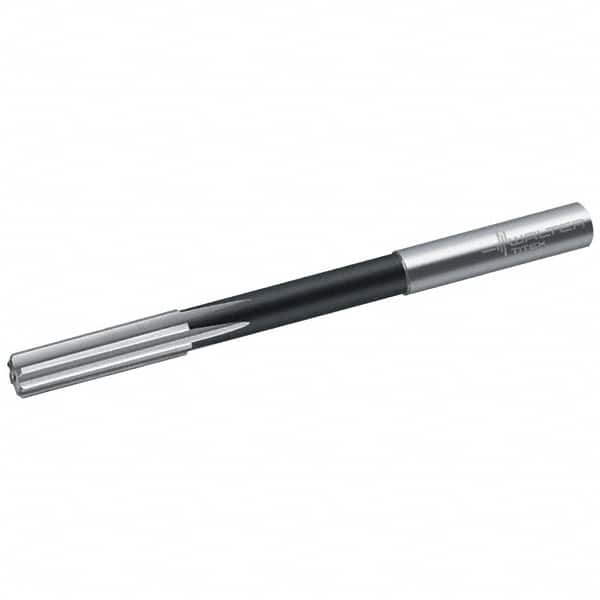

Walter-Titex - 4.1mm Cobalt 6 Flute Chucking Reamer - Straight Flute, 4mm Straight Shank, 19mm Flute Length, 75mm OAL
Item #: 36236214
Brand: Walter-Titex
Model #: 5071755
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 4.10 |
| Reamer Diameter (Decimal Inch) | 0.1614 |
| Reamer Material | Cobalt |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Flute Length (mm) | 19.00 |
| Flute Length (Decimal Inch) | 0.7480 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 6 |
| Maximum Shank Diameter (mm) | 4.00 |
| Maximum Shank Diameter (Decimal Inch) | 0.1575 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (mm) | h7 |
| Through Coolant | No |
