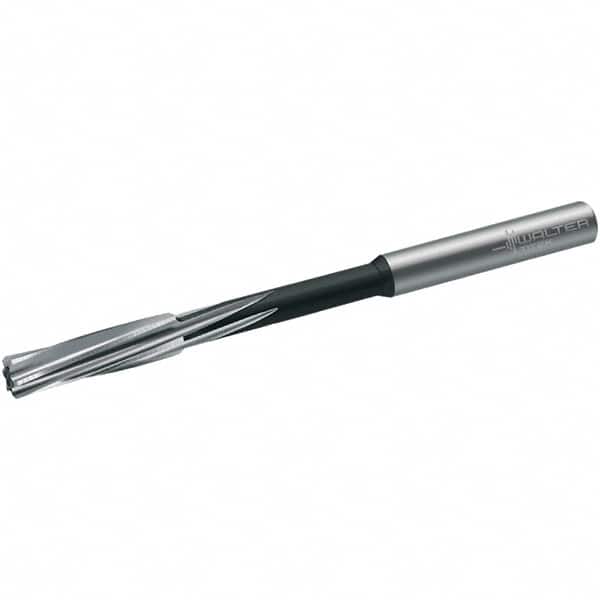

Walter-Titex - 0.97mm Cobalt 3 Flute Chucking Reamer - Spiral Flute, 0.97mm Straight Shank, 5.5mm Flute Length, 34mm OAL
Item #: 36218980
Brand: Walter-Titex
Model #: 5071938
Exact Tooling IR#: 04
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 0.97 |
| Reamer Diameter (Decimal Inch) | 0.0382 |
| Reamer Material | Cobalt |
| Shank Type | Straight |
| Flute Type | Spiral |
| Overall Length (mm) | 34.00 |
| Overall Length (Decimal Inch) | 1.3386 |
| Flute Length (mm) | 5.50 |
| Flute Length (Decimal Inch) | 0.2165 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 3 |
| Maximum Shank Diameter (mm) | 0.97 |
| Maximum Shank Diameter (Decimal Inch) | 0.0382 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (mm) | +0.004 |
| Through Coolant | No |
