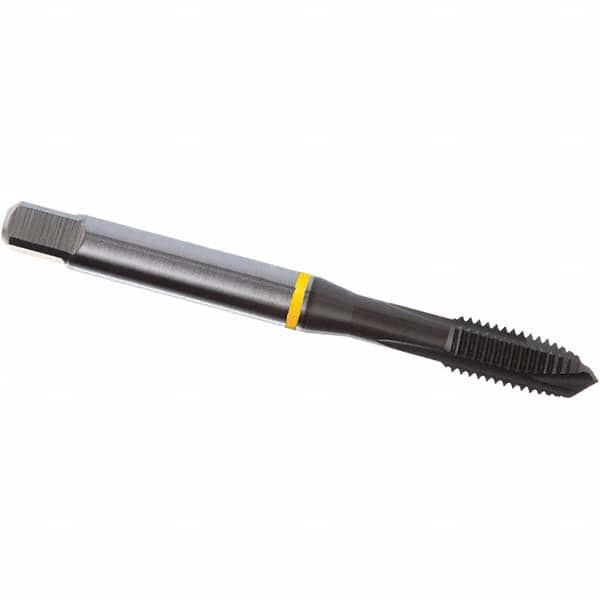

DORMER - #8-32 UNF 2B 4 Flute TiAlN Top Finish PM Cobalt Spiral Point Tap
Item #: 16952038
Brand: DORMER
Model #: 7350491
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
TiAlN Top (Titanium Aluminum Nitride) coatings offer high toughness and oxidation stability. It is used on of hard steels, nickel and titanium.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #8-32 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Thread Limit | H6 |
| Finish/Coating | TiAlN Top |
| Material | PM Cobalt |
| Through Coolant | Through Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 5.5120 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 1.0630 |
| Series/List | E909 |
| Style | High Performance Spiral Point |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.5970 |
| Material Application | Low-Alloy Steel |
