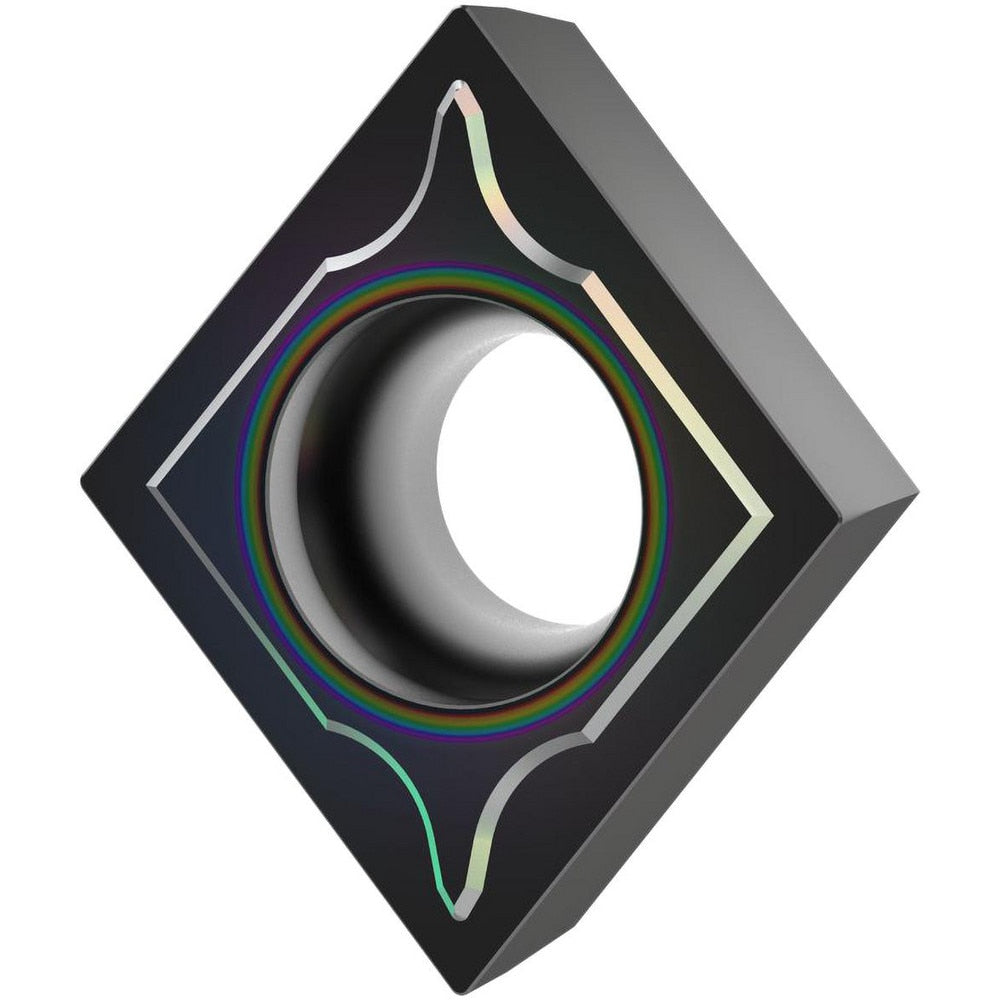

Turning Insert: CCGT21502MLFS KCS25S, Carbide
Item #: 94009214
Brand: Kennametal
Model #: 7154835
Product Specifications
| ANSI Insert Code | CCGT21502 |
| ISO Insert Code | CCGT060201 |
| Relief Angle | 7.000 |
| Insert Style | CCGT |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 35.00 |
| Manufacturer Grade | KCS25S |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | CCGT |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Light Machining |
| Grade Characteristics | Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1060 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 3/32 |
| Clearance Code | C |
| Tolerance Code | G |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2539 |
| Iso Code | CCGT060201MLFS |
| Manufacturers Catalog Number | CCGT21502MLFS KCS25S |
| Chip Breaker | LFS |
| ANSI Size Code | 21502 |
| ISO Size Code | 060201 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21502 |
| Country of Origin | Japan |
