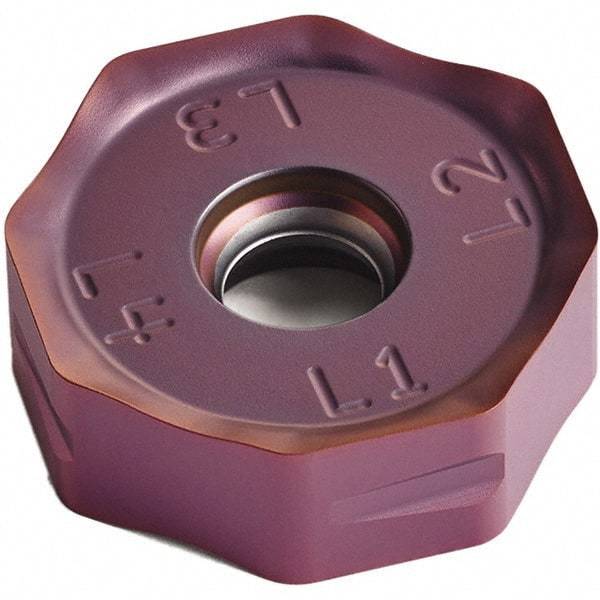

Seco - ONEU090520 M12 Grade MK2050 Carbide Milling Insert - TiSiN/TiAlN Finish, 5.8mm Thick, 12.41mm Inscribed Circle, 2mm Corner Radius
Item #: 35888395
Brand: Seco
Model #: 52851
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONEU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | MK2050 |
| Coating | TiSiN/TiAlN |
| Width (mm) | 22.00 |
| Length (mm) | 22.00 |
| Inscribed Circle (mm) | 12.41 |
| Thickness (mm) | 5.80 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 6.10 |
| Hole Diameter (Decimal Inch) | 0.2402 |
| Coating Process | PVD |
| Shape | Octagon |
| Insert Hand | Right Hand |
| Chipbreaker | M12 |
| Cutting Edge Style | Honed T-Land |
| ISO Number | ONEU090520ZZTN4-M12 |
