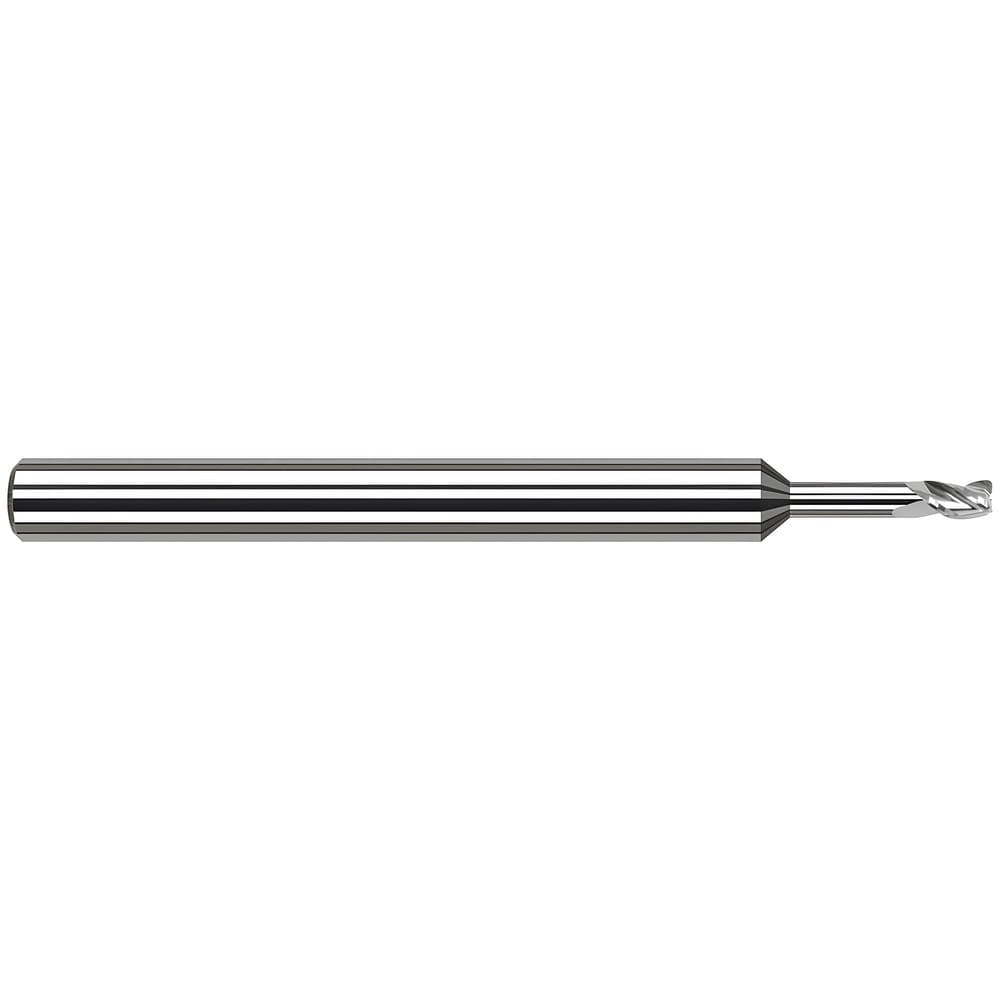

Corner Radius End Mill: 0.0310" Dia, 3/64" LOC, 0.0030" Radius, 3 Flute, Solid Carbide
Item #: 31763246
Brand: Harvey Tool
Model #: 949631-C8
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0310 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 3/64 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiB2 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0030 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 2.5 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0470 |
| Length Type | Extended |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Decimal Inch) | 0.3750 |
| Reach Length (Inch) | 3/8 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0005/-0.0005 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Non-ISO; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; K; M; N; O |
| Series | Material Specific End Mills; Stub Flute; Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach |
| Material Application | Wood; Composite; Aluminum; Stainless Steel; Cast Iron; Steel |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
