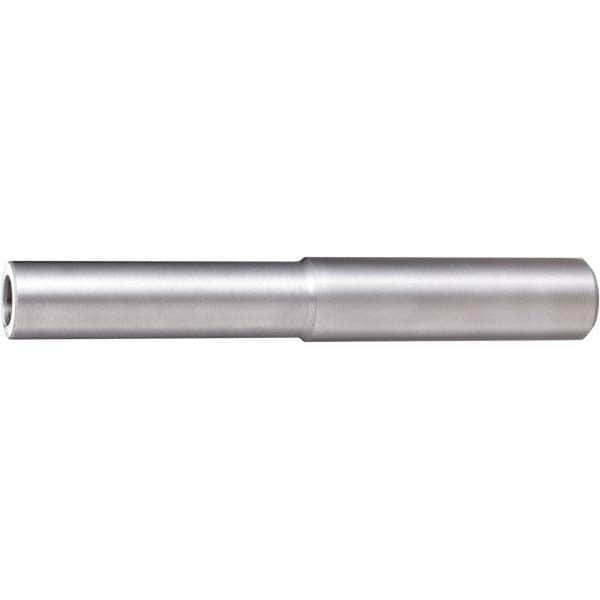

Replaceable Tip Milling Shank: Series 52600, 2" Projection, 5/8" Straight Shank
Item #: 32278020
Brand: OSG
Model #: 52600012
Product Specifications
| Projection (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Neck Diameter (Decimal Inch) | 0.5710 |
| Neck Thread Size | M08 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.5710 |
| Toolholder Style | PXM SF |
| Tool Material | Solid Carbide |
| Series | 52600 |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 2.0000 |
| Shank Shape | Round |
| Coolant Through | No |
| UNSPSC Code | 23291600 |
