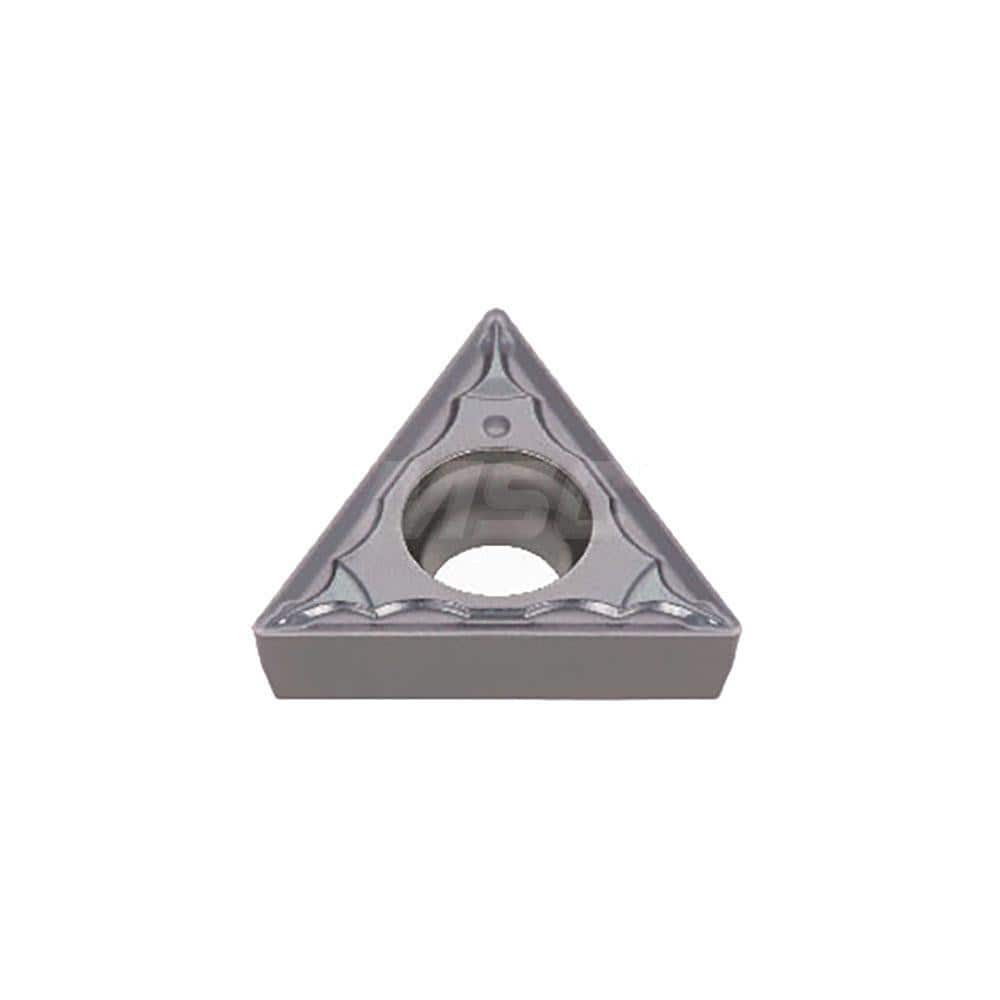

TCMT21.51PS AH725 Carbide Turning Insert 1/64″ Corner Radius, 60° Triangle
Item #: 35747690
Brand: Tungaloy
Model #: 6856794
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 21.51 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH725 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCMT |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4330 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | TCMT21.51PS |
| Standards | ISO |
| Chip Breaker | PS |
| Coating/Finish | Coated |
