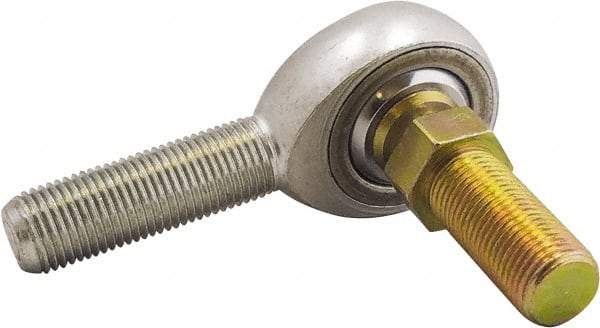

Made in USA - 1/4" ID, 3/4" Max OD, 5,262 Lb Max Static Cap, Male Spherical Rod End with Stud - 1/4-28 LH, 1" Shank Length, Alloy Steel with Steel Raceway
Item #: 35510858
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.2500 |
| Inside Diameter (Inch) | 1/4 |
| Style | Male Rod End w/ Stud |
| Maximum Outside Diameter (Decimal Inch) | 0.7500 |
| Maximum Outside Diameter (Inch) | 3/4 |
| Maximum Static Load Capacity (Pounds) | 5262.0 |
| Width (Inch) | 3/8 |
| Width (Decimal Inch) | 0.3750 |
| Thread Size | 1/4-28 |
| Material | Alloy Steel |
| Raceway Material | Steel |
| Shank Length (Decimal Inch) | 1.0000 |
| Thread Direction | Left Hand |
