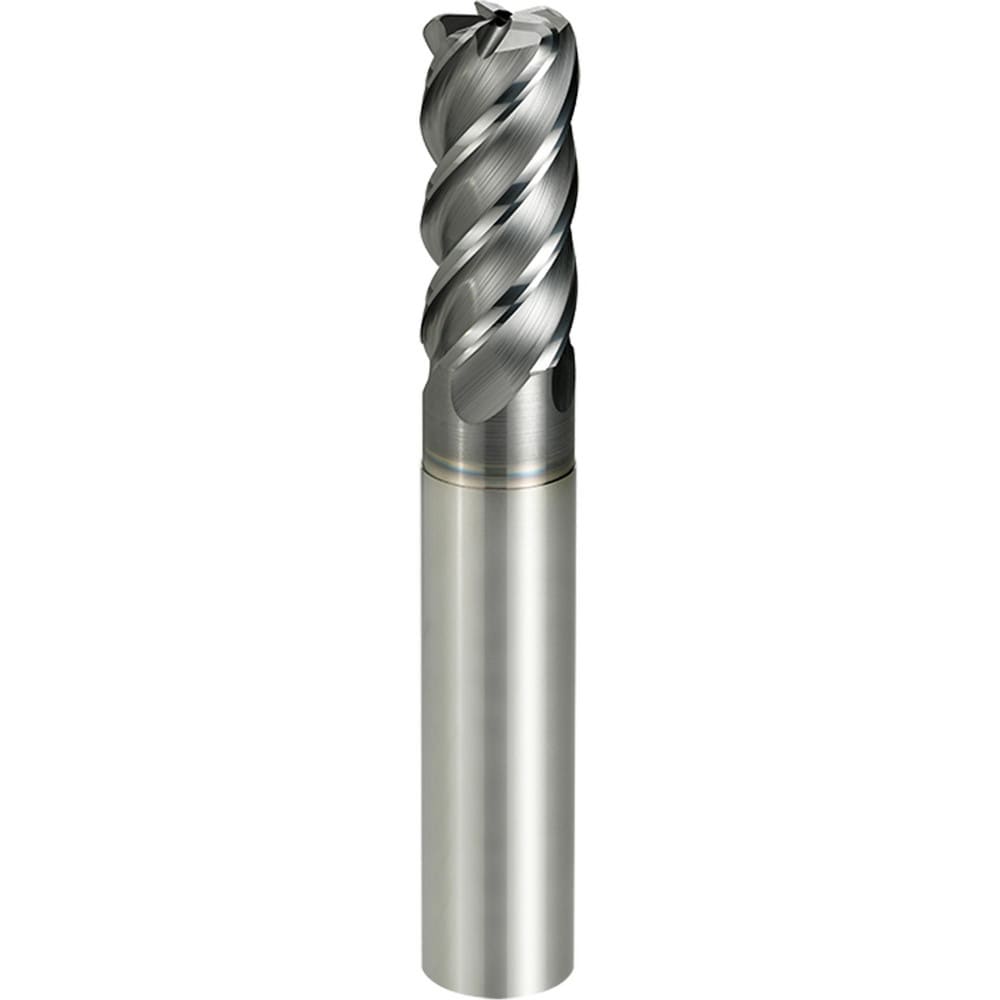

Corner Radius End Mill: 16 mm Dia, 34.00 mm LOC, 1.00 mm Radius, 5 Flute, Solid Carbide
Item #: 85240794
Brand: Mitsubishi
Model #: 10614419
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 34.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | AlCrN |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0394 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.00 |
| Overall Length (mm) | 120.00 |
| Coolant Through | Yes |
| End Type | Corner Radius |
| Length Type | Standard |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 16.00 |
| Neck Diameter (mm) | 15.50 |
| Neck Diameter (Decimal Inch) | 0.6102 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium; Titanium Alloy |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Material Application | Heat-Resistant Alloy; Titanium Alloy |
| Coating Classification | PVD |
| Country of Origin | Japan |
