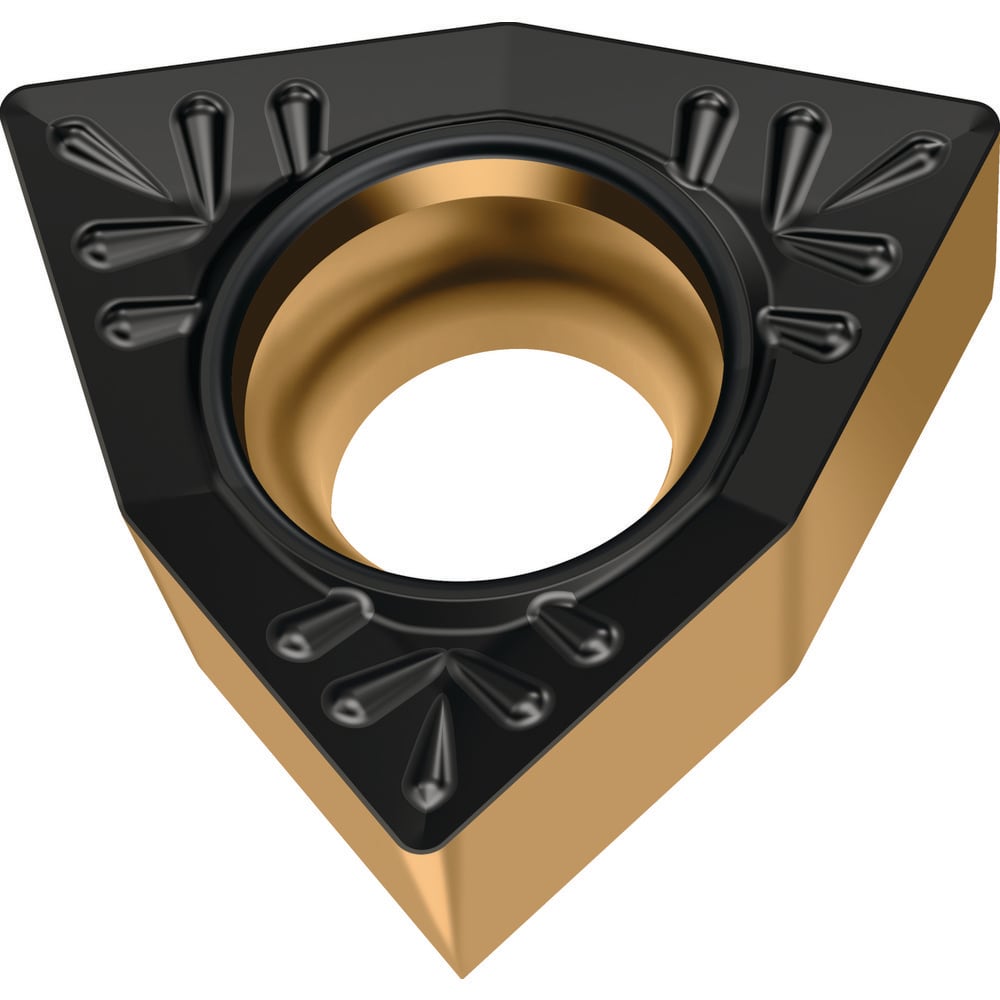

Turning Insert: WCMT181505RP4 WPP20G, Carbide
Item #: 99324949
Brand: Walter
Model #: 8205033
Product Specifications
| ANSI Insert Code | WCMT1.8(1.5)0.5 |
| ISO Insert Code | WCMT030202 |
| Relief Angle | 7.000 |
| Insert Style | WCMT |
| Corner Radius (mm) | 0.20 |
| Included Angle | 80.00 |
| Manufacturer Grade | WPP20G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Series | WCMT |
| Inscribed Circle (mm) | 5.56 |
| Insert Material | Carbide |
| Insert Shape | Trigon 80° |
| Chip Breaker Operation | Roughing |
| Grade Characteristics | Cast Iron (K) - Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.5000 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 3.91 |
| Manufacturers Catalog Number | WCMT030202-RP4 WPP20G |
| Chip Breaker | RP4 |
| Width (mm - 2 Decimals) | 5.56 |
| ANSI Size Code | 1.8(1.5)0.5 |
| ISO Size Code | 030202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 03 |
| Country of Origin | Germany |
